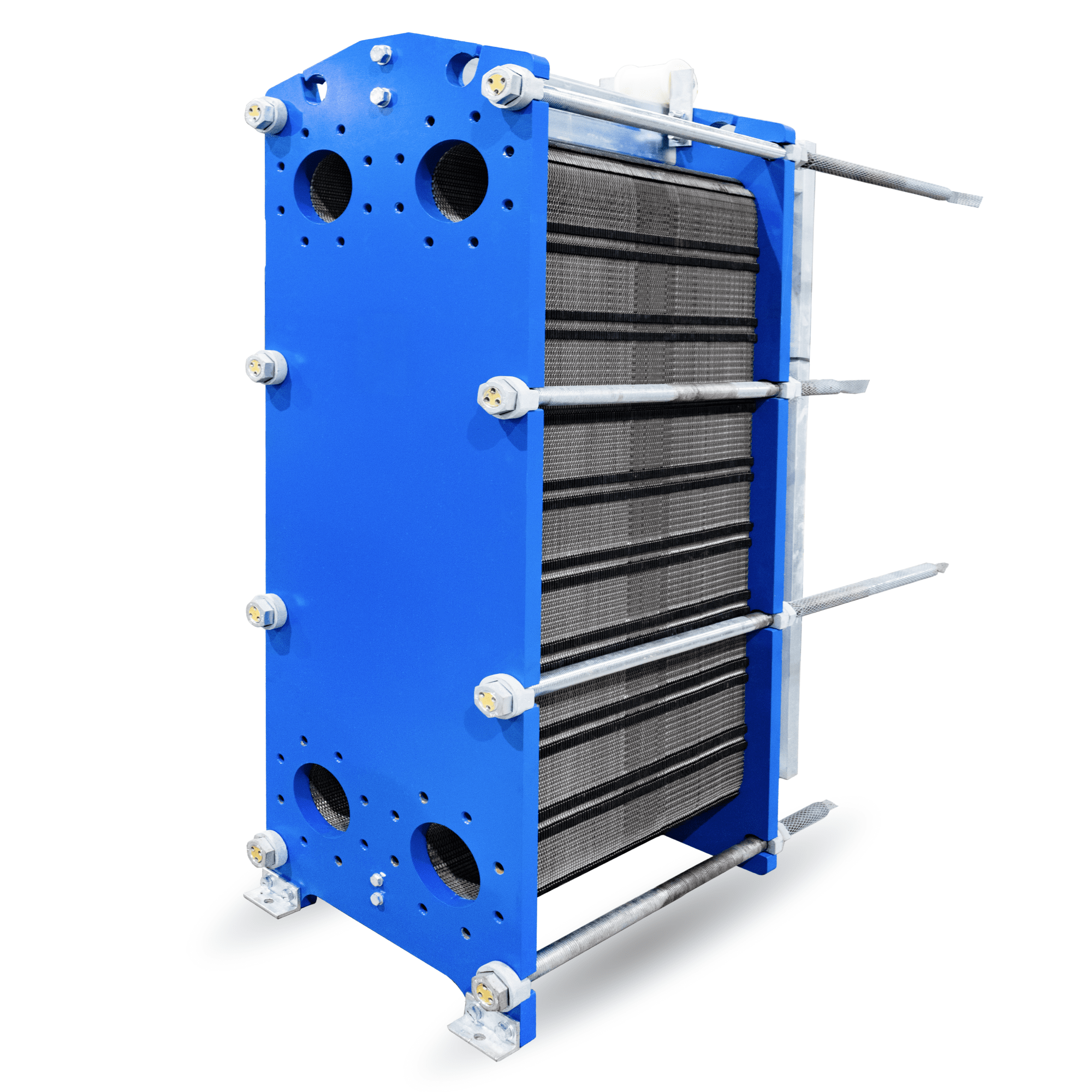

◦ FFW AHRI Plate and Frame Heat Exchangers

The Flo Fab heat exchanger consists of stamped plates designed to maximize heat transfer. Gaskets are fixed between the plates to contain the two separate fluids. These fluids flow alternately between every other plate, counter-flowing to produce the greatest rate of heat transfer and provide the closest temperature approach to the incoming cold fluid. The stamped plates use enhanced surface area flow to create scrubbing turbulence that increase the U-coefficient and increases heat transfer.

Additional information

Series

FFW AHRI

Max flow

10000 US GPM 2271 m³/hr up to 250 PSI (1724 kpa) Steam

Pressure

300 PSI 2068 kPa

Drawing

Documents


Datasheet

I.O.M
